Tube Ice Machine / Crystal Ice

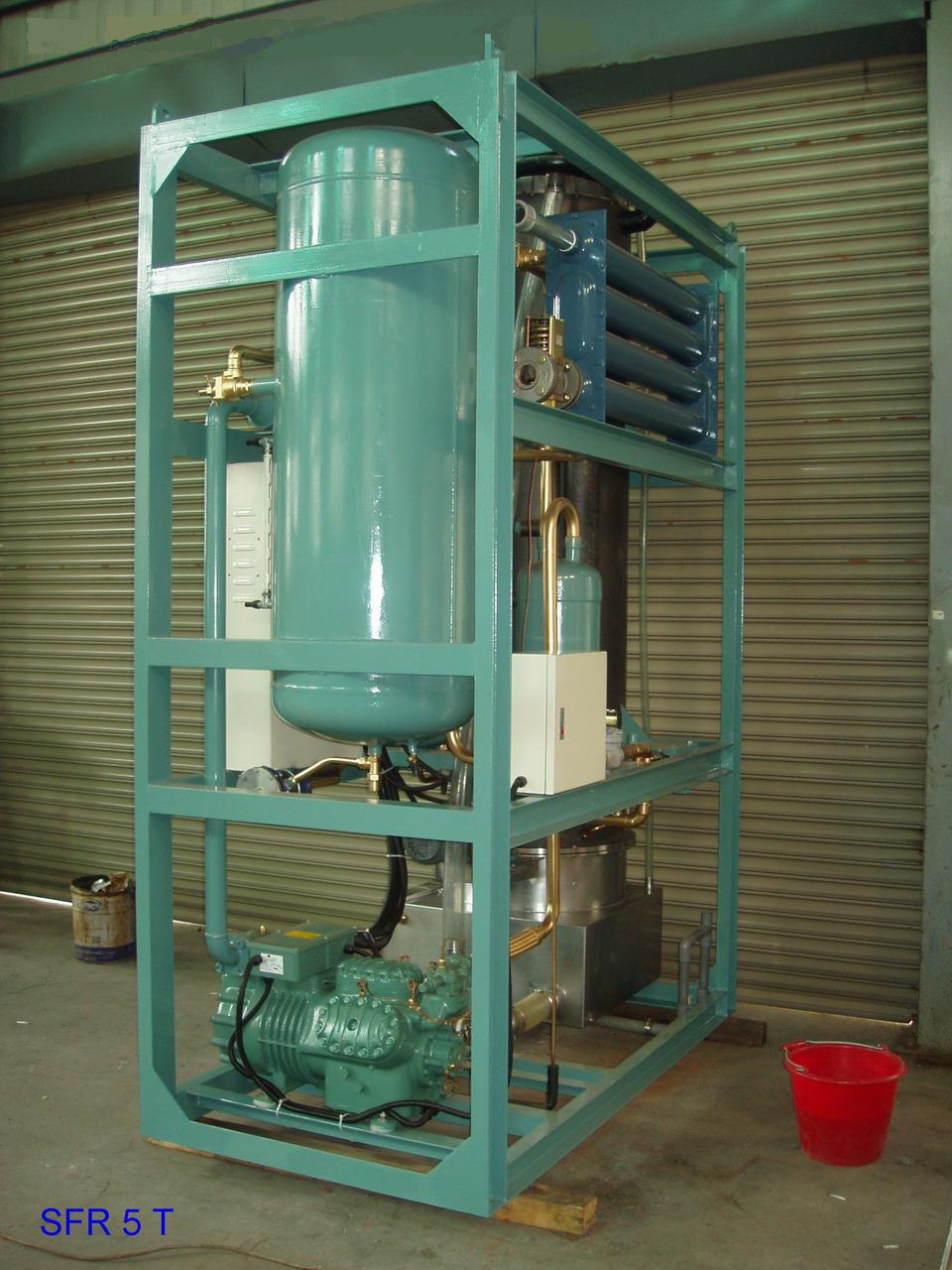

1.     Tube Ice kapasitas 5 Ton/hari

New Tube Ice Maker

Model                                            :  STR 5T

Year Made                                    :  Custom Made to Order

Production Capacity                     :  5000 kgs ± 5% Kgs 24 Hr

Refrigerant                                    :  R22 Freon

Size of Ice Tube Approx               :  Ø 29 mm

Dimension                                     :  520 (L) x 820 (W) x 2120 mm (H)

Compressor Type                          :  Bitzer (Made in Germany)

Compressor Capacity                    :  19 KW

Capacity (Kcal/Hr)                        :  28638

Total Output                                 :  25-30 Amps

Compressor Duration                    :  70 – 80% Loading Power

Voltage                                         :  380 V / 3 Ph / 50 Hz

Condensor                                     :  Water Cooled Condensor

Cooling Tower                              :  RT 15

Water Pump                                  :  38 mm x 10 HP 380 V / 3 Phase / 50 Hz

1 Set             SFR 5 T Tube Ice Maker Freon Surge Drum system, producing ice of approximated diameter Ø 29 mm 5000 kg ± 5% per 24 hrs





1. Ice Generator Structure of Parts details as below:

1.   1 Set       Ice Maker Freezer System and Liquid Accumulator consisting of:

Freezing Tube                      SUS 304 non-Joint Stainless Steel tubing (made in Japan) Top and Bottom part was welded with Quality Joining

Rotating Driver Ice Cutter   SUS 304 grad Stainless Steel Ice Cutter Blade run by medium speed gear motor 380 V/3p/50 Hz.

Calculation Water Pump      Centrifugal monobloc water pump c/w motor 380V/3P/50 Hz

Water Tank                          Top water distribution and Bottom water collection tank made from stainless steel complete with water level On/Off valve connect with pvc ball cock

Cylinder Protection              Agro foam sheet around the surface tank freezer maker



2.   1 Set       Bitzer (Made in Germany), semi-Hermetic single stage Compressor on mounting on steel base complete with:

-          Suction and discharge stop valve

-          Oil separator with automatic oil recovery system

-          Pressure gauge panel

-          Pressure switches

-          Capacity control solenoid



3.   1 Unit     Liquid Receiver Tank complete with:

-          Sight glass

-          Sight glass valve

-          Dual safety valve

-          Drain Valve





4.   1 Set       Shell & Tube Water cooled condenser, complete with:

-          Dual Safety Valve

-          Air Purging valve



5.   1 Set       Copper Piping and Fitting consisting of:

                           Pipe                          :  Non-bending join system

                           Pipe Insulation         :  Aero foam sheet clapped with PVC tape



6.   1 Set       15 RT Cooling Tower or Equivalent

                           Fan Motor                ¼  HP motor c/w fan blades & grads



7.   1 Set       Condenser Water Pump centrifugal monobloc pump type

                     : 1 HP motor c/w 4” PVC Piping and Hand Valve



8.   1 Lot      Refrigerant Safety Control

                     High / Low pressure switch, oil pressure switch, Oil separator, Filter Drier, Solenoid Valve, Sight glass, Hand valve, High pressure gauge, Low pressure gauge, Oil pressure gauge, Liquid Regulator (Danfoss or Saginomiya)

                     Safety Valve

                     Liquid Level Indication



9.   1 Set       40 Amps Electrical Main circuit breaker

                     Starter Circuit breaker set as below:

-          25 HP Starter for compressor motor branch circuit breaker

-          1 HP Starter for condenser water pump motor

-          ¼ HP Starter for cooling Tower Fan Motor

-          1 HP Starter for centrifugal water pump motor

-          1.5 HP Starter for Ice Cutter pump motor



10.   1 Set     Quality Pilot Indication Lamps:

-          For every main control active will indication on surface electrical



11.   1 Set     Accessories Parts:

-          On/Off starter switches

-          Digital Timer control for Ice Freezing and defrosting action

-          Electrical connation connector set

-          Voltage monitor relay





1.  New Tube Ice Maker Kapasitas 30 Ton/Hari

New Tube Ice Machine Ice Generator Maker with complete systems

Model                                            :  SFR-30TA

Year Made                                    :  Custom Made to Order

Production Capacity                     :  30.000 kgs ± 5% Kgs 24 Hr

Refrigerant                                    :  R717 (NH₃) Ammonia

Size of Ice Tube Approx               :  Ø 22 mm Approximated diameter



Model  Item	SFR – 30 TA
Production Size (mm)	Ø 22 mm
Daily Production (Kg/24 hr)	30.000 kg ± 5 % per 24 Hrs
Dimension (mm)	6000 (L)  x 4600  (W) x 5200 (H)
Compressor / Type	Mycom (made in Japan) or Equivalent
Power (KW)	90 Kw
Capacity (Kcal/Hr)	238.500
Total Output (HP)	125 HP
Total Electrical (Maximum)	(175 – 190) Amps
Compressor Duration	70% - 80% Loading Power
Voltage	380 V / 3 Phase / 50 Hz
Refrigerant	R717 (NH3) Ammonia
Cooling Tower	125 RT
Water Pump	4” x 7.5 HP





1 Set             “SFR-30 TA” Tube Ice Maker Ammonia surge drum system, producing ice of approximated diameter Ø 29 mm, 30.000 kg ± 5% per 24 Hrs





1. Structure of Parts details as below:

1.   1 Set       Ice –maker Freezer System and Liquid Accumulator consisting of:

Freezing Tube                      SUS 304 non joint stainless steel tubing (made in Japan) Top and bottom part was welded with Quality Joining

Rotating Driver Ice Cutter   SUS 304 grad Stainless Steel Ice Cutter Blade run by medium speed gear motor 380V/3Ph/50 Hz

Ice Making Pump                 Centrifugal monobloc water pump c/w motor 380V/3Ph/50Hz

Water Tank                          Top water distribution and Bottom water collection tank made from stainless steel with one set Water level On/Off valve connect with PVC ball Cock.

Cylinder Protection              Aero Foam Sheet around the surface tank freezer maker.





2.   1 Set       Mycom (Made in Japan) or equivalent open type single stage recriprocating compressor on mounting on steel base complete with:

-          Suction and discharge stop valve

-          Oil separator with automatic oil recovery system

-          Pressure gauge panel

-          Pressure switches

-          Capacity control solenoid



3.   1 Unit     Liquid Receiver Tank Complete with:

-          Sight Glass

-          Sight Glass valve

-          Dual Safety Valve

-          Drain Valve



            4.   1 Set       Shell and Tube water cooled condenser, complete with:

-          Dual Safety Valve

-          Air Purging Valve



             5.   1 Set      Ammonia Piping and Fitting consisting of:

                           Pipe                          :  Black steel pipe API Sch 40 or BSH 1387 seam ERW

                           Pipe Insulation         :  Aero Foam Sheet clapped with PVC Tape



             6.   1 Set      125 RT Cooling Tower or Equivalent

                           Fan motor                 :  5 HP  motor c/w fan blades & gards



             7.   1 Set      Condenser Water Pump, centrifugal monobloc pump type

                                                               7.5 HP  motor c/w 4” PVC, Piping and Hand Valve



 8.   1 Unit    Refrigerant Safety Control

                     High/Low pressure switch, Oil pressure switch, Oil separator, Filter drier, Solenoid Valve, sight glass, Hand Valve, High Pressure Gauge, Low Pressure Gauge, Oil Pressure Gauge, Liquid Regulator (Danfoss or Saginomiya)

-          Safety Valve (Mycom original)

-          Liquid Flow Level Control (Hansen, USA Made)

-          Liquid Level indication



 9.   1 Unit    300 Amps Electrical Main circuit breaker

                     Stater Circuit breaker set as below:

-          12.5 HP Stater for compressor motor branch circuit breaker

-          7.5   HP Stater for condenser water pump motor

-          5.0   HP Stater for Cooling Tower Fan motor

-          3.0   HP Stater for Centrifugal Ice Making Pump Motor

-          2.0   HP Stater for Ice Cutter Motor





10.   1 Unit   Quality Pilot Indication Lamps

-          For every main control active will indication on surface electrical control board with touch screen monitor



11.   1 Unit   Accessories Parts:

-          On/Off Starter Switches

-          Digital Timer control for Ice freezing and defrosting action

-          Electrical connation connector set

1. Stainless Steel Bin Screw Conveyor, complete specification detail as below:

1.   1 Set       Screw Conveyor complete with:

Ice Bin                           :  Stainless Steel Body Ice Bin

Screw Conveyor            :  Stainless Steel screw fin at sub with two side ball baring

Drive unit                       :  1.5 HP Gear Chains motor 415V/3Ph/50 Hz





1.   New Tube Ice Maker Kapasitas 50 Ton/Hari

New Tube Ice Machine Ice Generator Maker with complete systems

Model                                            :  SFR-50TA

Year Made                                    :  Custom Made to Order

Production Capacity                     :  50.000 kgs ± 5% Kgs 24 Hr

Refrigerant                                    :  R717 (NH₃) Ammonia

Size of Ice Tube Approx               :  Ø 22 mm Approximated diameter





Model  Item	SFR – 50 TA
Production Size (mm)	Ø 22 mm
Daily Production (Kg/24 hr)	50.000 kg ± 5 % per 24 Hrs
Dimension (mm)	To be Advice
Compressor / Type	Mycom (made in Japan) or Equivalent
All Motor Type	TECO or TATUNG
Total Output (HP)	200 HP
Total Electrical (Maximum)	200 Amps
Compressor Duration	70% - 80% Loading Power
Voltage	380 V / 3 Phase / 50 Hz
Refrigerant	R717 (NH3) Ammonia
Ice Maker Pumps	5.0 HP Motor
Ice Cutter Motor	3.0 HP Motor
Compressor Cooling Pump	2.0 HP Motor
Cooling Tower	175 RT
Fan Motor	5.0 HP Motor
Towers Water Pump	15.0 HP Motor
Piping Type	5” P.V.C Piping





1 Set             “SFR-50 TA” Tube Ice Maker Ammonia surge drum system, producing ice of approximated diameter Ø 29 mm, 50.000 kg ± 5% per 24 Hrs





1. Structure of Parts details as below:

1.   1 Set       Ice –maker Freezer System and Liquid Accumulator consisting of:

Freezing Tube                      SUS 304 non joint stainless steel tubing (made in Japan) Top and bottom part was welded with Quality Joining

Rotating Driver Ice Cutter   SUS 304 grad Stainless Steel Ice Cutter Blade run by medium speed gear motor 380V/3Ph/50 Hz

Ice Making Pump                 Centrifugal monobloc water pump c/w motor 380V/3Ph/50Hz

Water Tank                          Top water distribution and Bottom water collection tank made from stainless steel with one set Water level On/Off valve connect with PVC ball Cock.

Cylinder Protection              Aero Foam Sheet around the surface tank freezer maker.





2.   1 Set       Mycom (Made in Japan) or equivalent open type single stage recriprocating compressor on mounting on steel base complete with:

-          Suction and discharge stop valve

-          Oil separator with automatic oil recovery system

-          Pressure gauge panel

-          Pressure switches

-          Water cooled oil cooler

-          Water cooled system for cylinder head top covers

-          Capacity control solenoid



3.   1 unit      Teco/Tatung (Made in Taiwan) or equivalent Electric Motor

-          200 HP 380V/3 Ph/ 50 Hz Motor

-          Class E Model





4.   1 Unit     Liquid Receiver Tank Complete with:

-          Sight Glass

-          Sight Glass valve

-          Dual Safety Valve

-          Drain Valve



            5.   1 Set       Shell and Tube water cooled condenser, complete with:

-          Dual Safety Valve

-          Air Purging Valve



            6.   1 Set       Ammonia Shuft Off valve and Control consisting of:

                                 Stop Valve               :    “HERL” or Equivalent

                                 Control Valve          :    “Danfoss” or Equivalent



             7.   1 Set      Ammonia Piping and Fitting consisting of:

                           Pipe                          :  Black steel pipe API Sch 40 or BSH 1387 seam ERW

                           Pipe Insulation         :  Aero Foam Sheet clapped with PVC Tape



             8.   1 Set      175 RT Cooling Tower or Equivalent

                           Fan motor                 :  5 HP  motor c/w fan blades & gards



             9.   1 Set      Condenser Water Pump, centrifugal monobloc pump type

                                                               15 HP  motor c/w 5” PVC, Piping and Hand Valve



             10.  1 Set     Compressor Cooling water Pump, centrifugal monobloc pump type

                                                               2.0 HP  motor c/w 1 ½” PVC Piping



11.   1 Lot    Refrigerant Safety Control

                     High/Low pressure switch, Oil pressure switch, Safety Valve (Mycom original)





12.   1 Set     Liquid flow level control (HANSEN, USA made)



13.   1 Set     Liquid level indication



             14.  1 Lot    Installation Jobs:

-          Complete works with Ammonia Iron piping welding, , system vacuuming, pressure testing

-          R717 (NH₃) Ammonia gas to be provided up to standard Level

            15.   1 Set     450 Amps Electrical Main circuit breaker

                     Stater Circuit breaker set as below:

-          200 HP Starter for compressor motor branch circuit breaker

-          15   HP Starter for condenser water pump motor

-          5.0   HP Starter for Cooling Tower Fan motor branch circuit breaker

-          5.0   HP Starter for Ice Making Pump motor branch circuit breaker

-          3.0   HP Starter for Ice Cutter motor branch circuit breaker

-          2.0   HP Starter for Compressor Cooling motor Pump branch circuit breaker





10.   1 Set     Electrical Quality Pilot Indication Lamps

-          For every main control active will indication on surface electrical control board



11.   1 Set     Accessories Parts:

-          On/Off Starter Switches

-          Digital Timer control for Ice freezing and defrosting action

-          Electrical connation connector set

-          Heat Discharges fan sets

1. Stainless Steel Bin Screw Conveyor, complete specification detail as below:

1.   1 Set       Screw Conveyor complete with:

Ice Bin                           :  Stainless Steel Body Ice Bin

Screw Conveyor            :  Stainless Steel screw fin at sub with two side ball baring

Drive unit                       :  1.5 HP Gear Chains motor 380V/3Ph/50 Hz



Alpha Technics

Medan – Sumatera Utara – Indonesia

Ph.          :  +6261-4560645-76888817-77861787

Fax.        :  +6261-4560645

Cell         : +62819899817

Email      :  alphatechnics17@yahoo.com

Website :  www.alphatechnic17.com
