1.     New Dry Flake Ice kapasitas 5 Ton/hari

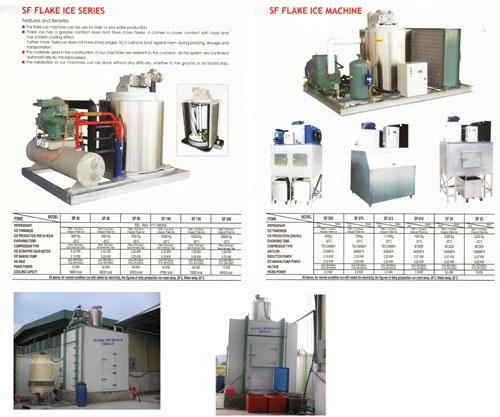

New Dry Flake Ice Machine Ice Generator Maker with complete systems

Model                                            :  SF60

Year Made                                    :  Custom Made to Order

Production Capacity                     :  5500 kgs ± 5% Kgs 24 Hr

                                                         (Ambient Temp 30°C Water Temp. 27°C)

Evaporating Temperature              :  -25°C

Refrigerant                                    :  R22 Freon

Ice Thickness                                :  Minimum 1.8 – 2.1 mm

Capacity per Hour                         :  200 – 230 kgs

Dimension                                     :  1400 x 1850 x 1500 mm (H)

Compressor Type                          :  Bitzer (Made in Germany)

Compressor Capacity                    :  30 HP

Fixing Power                                 :  22 Kw

Compressor Durations                  :  70% - 80% Loading Power

Voltage                                         :  380 V / 3 Ph / 50 Hz

Cooling Tower                              :  RT 25

Flake Ice Storage                          :  Nil

Ice Making Pump                          :  0.25 Kw

Ice Scrapper Gear Motor              :  0.55 Kw

Cooling Capacity                          :  28.200 Kcal

Condenser Water Pump                :  2” x 1.5 HP 380 V / 3 Ph / 50 Hz

1. Ice Generator Structure of Parts details as below:

1.   1 Set       Ice –maker Freezer System and Liquid Accumulator consisting of:

Recycle Liquid            Special design Re-cycle liquid system by liquid injection control (Liquid Re-cycle systems originally has reserved copyright)

Freezing Evaporator    The Evaporator is finish machined by highly heat-conductive alloy, with anti rash protection.

Rotating Ice Scraper   SUS 304 grade Stainless Steel Ice Scrapper Blade run by custom made, Low speed gear motor 380 V/3 Ph/50 Hz.

Ice Making Pump        Centrifugal monobloc water pump c/w motor 380V/3Ph/50Hz (Internal water distribution by rotating sub rack)

Chilled Water Tank     Top water distribution with high pressure joint unit, Bottom water collection recycling tank made from aluminum, water level On/Off valve control connect with PVC ball cock and start water pump.

Cylinder Protection     High density PU insulation injected around internal between bin Freezer maker and Stainless Steel exterior (100 mm – 125 mm approximate only)

2.   1 Set       Bitzer (Made in Germany), semi-Hermetic single stage Compressor on mounting on steel base complete with:

-          Suction and discharge stop valve

-          Oil separator with automatic oil recovery system

-          Pressure gauge panel

-          Pressure switches

-          Capacity control solenoid

3.   1 Unit     Shell & Tube water condenser, complete with:

-          Dual Safety valve

-          Air purging valve

4.   1 Set       Copper Piping and Fitting consisting of:

                           Piping                       :  Standard Copper pipe

                           Pipe Insulation         :  Aero foam sheet or tube clapped at our layer copper tube

5.   1 Set       25 RT Cooling Tower & Condenser Water pump Centrifugal monobloc pump type or equivalent

                           Fan Motor                1.0 HP motor c/w fan blades & grads

                           Condenser Pump      1.5 HP motor water pump c/w 2” Piping and Hand Valve

6.   1 Lot      Refrigerant Safety Control

High/Low pressure control, Oil Separator, Sight Glass, Hand Valve, Sight Glass Safety Valve, service valve.

                                 Danfoss product      :  Danfoss EVR 15 Electrical On/Off Solenoid Valve

                                 (Denmark Made)         Danfoss KP15 Liquid High/Low Pressure Switch safety control

                                                                     Danfoss MP54 Oil Differential Pressure Switch safety control

                                                                     Danfoss Filter Drier with interchangeable solid core.

                                                                     ALCO Expansion Valve

2. Electrical Centralize Main Switch Control Panel Specification Detail as below:

1.   1 Set       60 Amps Electrical Main Circuit Breaker

                     Starter Circuit breaker set as below:

-          25.0 HP Starter for compressor motor branch circuit breaker

-          1.5 HP Starter for Condenser water pump motor

-          1.0 HP Starter for Cooling Tower Fan Motor

-          1/3 HP Starter for Centrifugal water pump motor

-          ¾ HP Starter for Ice Scrapper motor

2.   1 Set       Quality Pilot Indication Lamps

-          For every main control active, will indication on surface electrical control board

3.   1 Set       Accessories Parts

-          Voltage monitor relay

-          Compressor Overload Protection Relay unit

-          Main Starting On/Off starter switches

-          Electrical branch connation connector set.
